GARRETT® GTX5544R GEN II

Call for price

Horsepower: 1400 – 2850

Displacement: 3.0L – 12.0L

  • GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 102mm AND 106mm TURBOCHARGER COMPRESSOR OPTIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • LIGHTWEIGHT BILLET BACKPLATE
  • SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING
Categories: , ,

Description

Horsepower: 1400 – 2850

Displacement: 3.0L – 12.0L

  • GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
  • 102mm AND 106mm TURBOCHARGER COMPRESSOR OPTIONS
  • NEW FULLY-MACHINED SPEED SENSOR PORT
  • IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
  • LIGHTWEIGHT BILLET BACKPLATE
  • SFI SUPER CORE AND TURBINE OPTIONS AVAILABLE
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • (NEW) BACKPLATE TO COMPRESSOR HOUSING O-RING

Reference Data

GTX5544R GEN II Compressor Turbine
Super Core PN Inducer Exducer Trim A/R Inducer Exducer Trim
851285-5021S 102mm 144mm 50 0.96 112 102 84
851285-5022S 106mm 144mm 54 0.96 112 102 84
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 761208-0014 1.00 T6 V-Band Free Float N 84
761208-0015 1.12 T6 V-Band Free Float N 84
761208-0025 1.24 T6 V-Band Free Float N 84
761208-0017 1.40 T6 V-Band Free Float N 84
761208-0020 1.78 T6 V-Band Free Float N 84
* SFI Certified Turbine Housings 761208-0026 1.00 T6 V-Band Free Float N 84
761208-0042 1.12 T6 V-Band Free Float N 84
761208-0027 1.24 T6 V-Band Free Float N 84
761208-0043 1.40 T6 V-Band Free Float N 84
761208-0044 1.78 T6 V-Band Free Float N 84

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

GARRETT® GTX5544R GEN II COMPRESSOR MAP
GARRETT® GTX5544R GEN II COMPRESSOR MAP

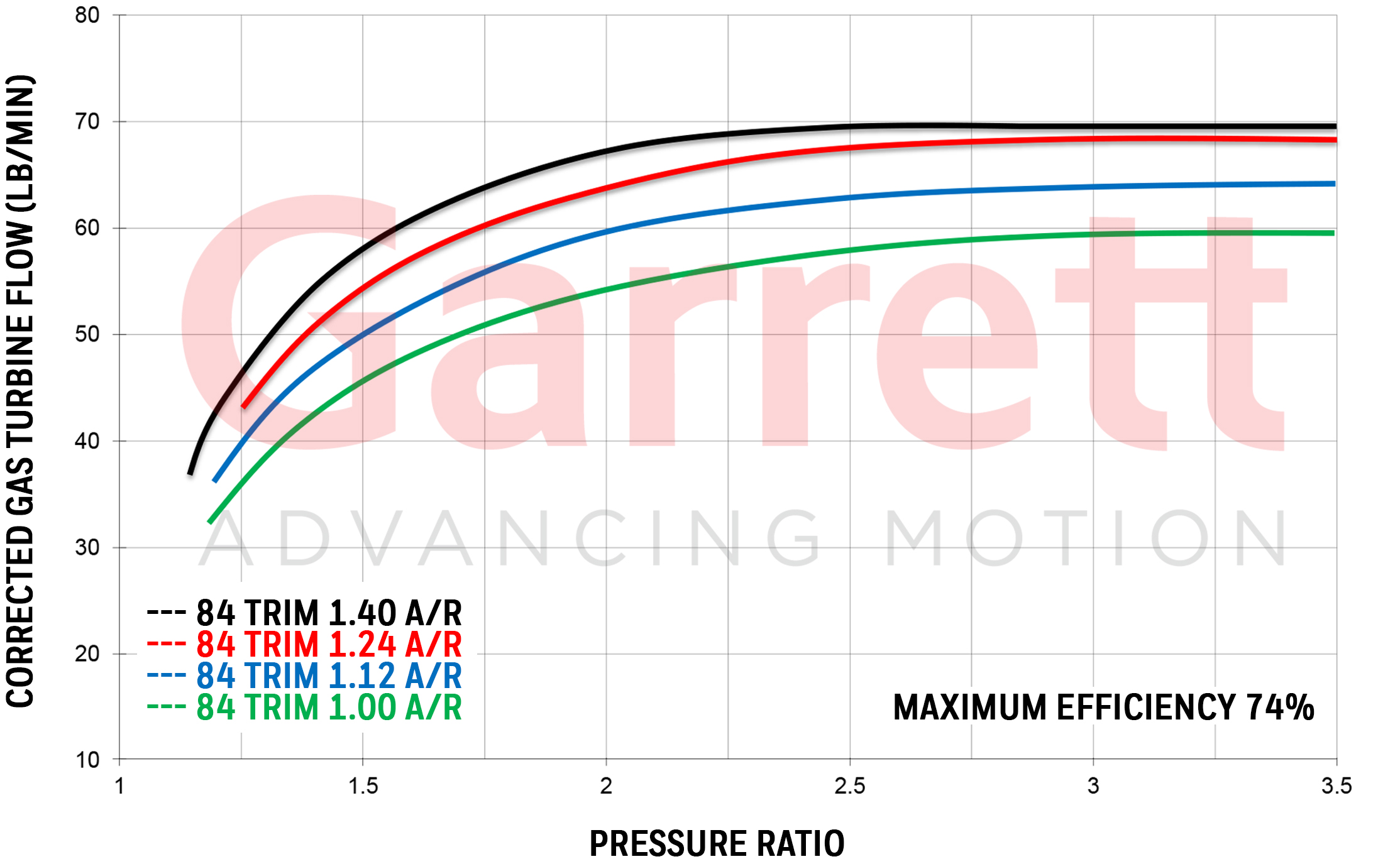

GARRETT® GTX5544R GEN II EXHAUST FLOW CHART
GARRETT® GTX5533R GEN II EXHAUST FLOW CHART
