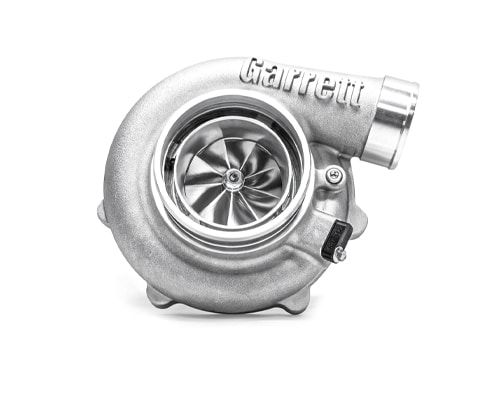

GARRETT® G35-1050

Call for price

Horsepower: 700 – 1050

Displacement: 2.5L – 5.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 68mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • STANDARD ROTATION SUPERCORE 880695-5002S
  • REVERSE ROTATION SUPERCORE 880696-5002S
  • TURBINE HOUSING AND SUPERCORE SOLD INDIVIDUALLY
Clear
SKU: N/A Categories: , ,

Description

Horsepower: 700 – 1050

Displacement: 2.5L – 5.5L

  • GARRETT® G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 68mm TURBOCHARGER COMPRESSOR OPTION
  • NEW TURBINE WHEEL AERO CONSTRUCTED OF MAR-M ALLOY RATED FOR UP TO 1050° C
  • STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • STANDARD ROTATION SUPERCORE 880695-5002S
  • REVERSE ROTATION SUPERCORE 880696-5002S
  • TURBINE HOUSING AND SUPERCORE SOLD INDIVIDUALLY

Reference Data

G35-1050 Reference Data Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
68mm 84mm 65 0.75 68mm 62mm 84
G35-1050 Standard Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880695-5002S 740902-0102 0.61 V-Band V-Band Free Float N
740902-0103 0.83 V-Band V-band Free Float N
740902-0104 1.01 V-Band V-band Free Float N
740902-0105 1.21 V-Band V-band Free Float N
G35-1050 Reverse Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
880696-5002S 740902-0112 0.61 V-Band V-Band Free Float N
740902-0113 0.83 V-Band V-band Free Float N
740902-0114 1.01 V-Band V-band Free Float N
740902-0115 1.21 V-Band V-band Free Float N

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

Compressor Map & Exhaust Flow Chart

GARRETT® G35-1050 COMPRESSOR MAP
GARRETT® G35-1050 COMPRESSOR MAP
GARRETT® G35-1050 EXHAUST FLOW CHART
GARRETT® G35-1050 EXHAUST FLOW CHART
